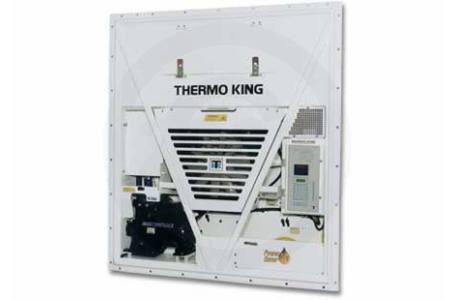

Thermo King CRR-40

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

Save energy, save fuel... every unit, every day, every voyage.

Most advanced temperature control in the industry
Reliability you can count on
Backed by the industry's largest worldwide parts and service network
Lower weight for more cargo

Standard Features:

R-134a refrigerant
Reciprocating compressor: Copeland® 3D semi-hermetic reciprocating compressor with Demand Cooling™ and ambient compensated internal overload and high-temperature protection
Demand Cooling™ system
Forced-feed lubrication system
Ambient compensated internal overload and high-temperature protection system
Oil: polyol ester
Oil level sight glass provided
Paint finish: corrosion-resistive paint
Microprocessor controller The MP-3000 microprocessor controller provides thermostat, digital thermometer programming keypad, mode indicators, and a digital status readout window for displaying electronically recorded trip and cargo information
MP-3000 includes PTI programs, manual test, self-diagnostic test, advanced service information and service help functions
An optional USDA-approved data recorder records operating conditions up to 365 days
The controller contains the following basic features and components:
Backlit LCD digital display
Mode indication LEDs
Alarm indicator functions
Defrost cycle control
Internal self-checking/diagnostics
Pre-trip testing for reefer unit
Remote monitoring and data retrevial interface ports
Data recording
Electronic phase selection
3-phase current monitoring & protection
Power consumption control to limit total unit power consumption
Proportional-integrated differential(PID)
Non-corrosive sea-going construction includes marine-treated aluminum alloy frame, non-corrosive fittings, all stainless steel hardware, receiver tank, water-based lacquer-coated condenser coil, hydrophilic coating on evaporator coil, and a marine duty protective coating on the compressor
Condenser and evaporator fan motors include stainless steel shafts and internal thermal overload protection
CFC-free foamed-in-place insulation
Fresh air exchange adjustable from 0-285 m³/hr (0-150 ft³/min)
Unit wired for 380/460V, 3-phase, 50/60 HZ power supply with an 18 meter (60 ft) 11/4 power cable with CEE-17 plug
Bottom air discharge
Automatic electronic phase system
29 Vac control system
Demand defrost and supplemental timed defrost
Manual defrost initiation via MP-3000 keypad
Cool, Modulation Cool, Null, Heat, Defrost, In-Range and alarm indicator lights
Time delay start sequence
ABS certification
Composite condenser and evaporator fans
Conforms to ISO classifications and specification for thermal containers including racking and end loading standards, TIR specifications, ATP refrigeration standards, ARI standards for rating refrigeration capacity, UIC international Union of Railways, Australian Electrical Certification, British Standard 3755 Requirement (TAINT), USDA requirements for "Insect Cold" treatment, and Agrotechnological Research Institute (ATO-DLO) for flower bulb transportation
Auxiliary battery and charger
USDA "Cold Treatment" provision
Bulb mode
De-humidity control

Options:

Dual-voltage transformer
Water-cooled condenser
Humidity control
De-humidity control
4-pin remote monitoring receptacle
Partlow temperature recorder
Saginomiya temperature recorder
Remote monitoring
Suction/discharge pressure gauges
Transfresh provision
10/4 power cable
AFAM or AFAM+

Refrigeration Capacity: Zer-O™ system net cooling capacities at 37.8 degrees C (100 degrees F) ambient and 60 Hz electric power.

Degrees C: 21, Degrees F: 70, Watts 13541, KCal/hr: 11642, Btu/hr: 46200
Degrees C: 2, Degrees F: 35, Watts 11753, KCal/hr: 10105, Btu/hr: 40100
Degrees C: -18, Degrees F: 0, Watts 6009, KCal/hr: 5166, Btu/hr: 20500
Degrees C: -29, Degrees F: -20, Watts 3107, KCal/hr: 2671, Btu/hr: 10600

Heating Capacity: System net heating capacity (including motor heat with 60Hz electric power)

5880 Watts (5056 KCal/hr, 20068 Btu/hr)

Evaporator Fan Airflow: High Speed

60Hz: 12.7 mm (0.50 in) WG, 5,603 m³/hr, 3300 cfm
30Hz: 19.0 mm (0.75 in) WG, 5,094 m³/hr, 3000 cfm

Weight: (with reciprocating compressor)

Unit: 1150 lbs, 522 kg

Dimensions:

Unit Height: 88 in (2235 mm), Width: 79.75 in (2026 mm), Depth: 16.54 in (420 mm)

Specifications

Capacities
Cooling Capacity	@ 70°F: 46,200 Btu/hr, @35°F: 40,100 Btu/hr, @0°F: 20,500 Btu/hr, @-20°F: 10,600 Btu/hr
Heating Capacity	5880 Watts (5056 KCal/hr, 20068 Btu/hr)
Airflow
Airflow Volume	At 60Hz: 12.7 mm (0.50 in) WG: 5,603 m³/hr (3,300 cfm)
General
Weight	1150 lbs (522 kg)
Dimensions	Height: 88 in (2235 mm), Width: 79.75 in (2026 mm), Depth: 16.54 in (420 mm)

Compare Models

Airflow

Year	2008
Manufacturer	Thermo King
Model	CRR-40
Style	Container
Airflow Volume	At 60Hz: 12.7 mm (0.50 in) WG: 5,603 m³/hr (3,300 cfm)
Discharge Velocity (airthrow)
Capacities
Cooling Capacity	@ 70°F: 46,200 Btu/hr, @35°F: 40,100 Btu/hr, @0°F: 20,500 Btu/hr, @-20°F: 10,600 Btu/hr
Heating Capacity	5880 Watts (5056 KCal/hr, 20068 Btu/hr)
Engine
Engine Type
Engine Model
Engine Rating
General
Weight	1150 lbs (522 kg)
Dimensions	Height: 88 in (2235 mm), Width: 79.75 in (2026 mm), Depth: 16.54 in (420 mm)
